690mm*15000m Jumbo Thermal Paper ATM Cash Register Thermal Paper
Rolls
Introduction
80*80mm Jumbo Thermal Paper 80X80 57X40 POS ATM Cash Register
Thermal Paper Rolls
1. Durable,without adding fluorescent agent,the paper's protective
coating and thermal coating formula is reasonable bright white and
smoothe without jam
2. Paper roll neat,do not drop dust,high quality natural wood pulp
basepaper
3. Fine Paper,fine workmanship,paper roll tightness
moderate,smooth,do not hurt the print head
4. Clear and smooth printing,uniform distribution of
thermosensitive coating, lasting preservation
Technical Data
Thermal Paper Specification
GSM Range: 44gsm, 45gsm, 48gsm, 50gsm, 55gsm, 58gsm, 60gsm, 70gsm.
| Item | 45gsm | 55gsm |
| Substance (gsm) | 45±4% | 55±4% |
| Thickness (um) | 50±4 | 60±4 |
| Paper Density (g/cm3)) | 0.85-0.93 | 0.85-0.93 |
| Brightness (ISO) | ≥85% | ≥85% |
| Opacity | ≥65% | ≥65% |
| Optical density △D (5min) | ≥1.20 | ≥1.20 |
| Light resistance (residual △E after 144 hours) | ≥86% | ≥86% |
| Smoothness (top side),S | ≥300 | ≥300 |
| Smoothness (bottom side), S | ≥55 | ≥55 |
| TSI (MD, N.m/g) | ≥50 | ≥50 |
| Tear Strength (MD/CD) | ＞180/220 | ＞200/250 |
| Moisture on delivery | 6.0-8.0% | 6.0-8.0% |
| BPA | free | free |
| Image Stability Time | ≥7years | ≥7years |
Storage Conditions
To ensure the 7 years imaging duration, need to avoid to expose to
items as following:
Water, cleaning products, plasticizers (cellophane, PVC), coated
paper, carbonless paper, ammonia, organic solvents and petroleum
derivatives
(alcohol, acetone, ester, ether, toluene, benzene, gasoline), oils.
It should be stored in warehouses or lab. or archives properly with
a humidity of 50% ± 10 and a temperature of 20- 25ºC.
Characteristics
Printability: Good printing adaptability, high smoothness
Imaging ability: Fast image development, good image intensity
Aging-resistant: Good light durability, good abrasion resistance
Dimension stability: Good demension stability, precise overprint and collating
Quality and service: Stable quality control, excellent after-sales service
What is the use of thermal paper roll?
Thermal paper is a special
fine paper that is coated with a material formulated to change color when
exposed to heat. It is used in thermal
printers, particularly in inexpensive or lightweight devices such as adding
machines, cash
registers, and credit
card terminals.
Why Choose Us
1.) High quality
a: 100% virgin wood pulp.
b: High smoothness up to 300s which is friendly to your printer
heads.
c: Clear & Sharp Imaging
d: Good stiffness
.
e: 5-7 years image life will meet your various requirements.
2) Professional quality control system
3) Well-known brand with attractive packing
4) More than 10 years thermal Paper manufacture experience
Company Information
How Is Thermal Paper Produced

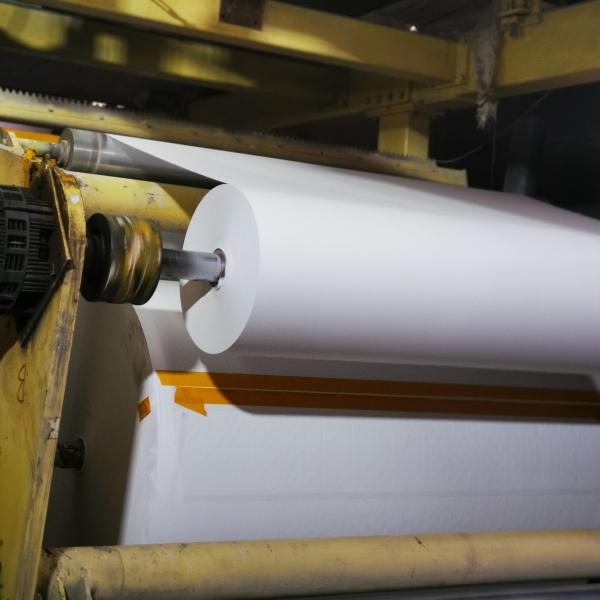

100% Wood pulp - Paper Making Machine - Rewinder - Thermal Paper
Coating Machine - Slitting Rewinder - Thermal Paper Jumbo Roll -
Cash Register Roll Slitting Machine - Cash Register Roll/POS Roll
Packaging And Loading Of FOCUS Thermal Paper
CERTIFICATE OF FOCUS THERMAL PAPER
SGS, BV, FSC, ISO
FOCUS attends more than 15 exhibitions of carbonless paper/thermal
paper/paper machine every year all over the world to meet and
service clients face to face.
