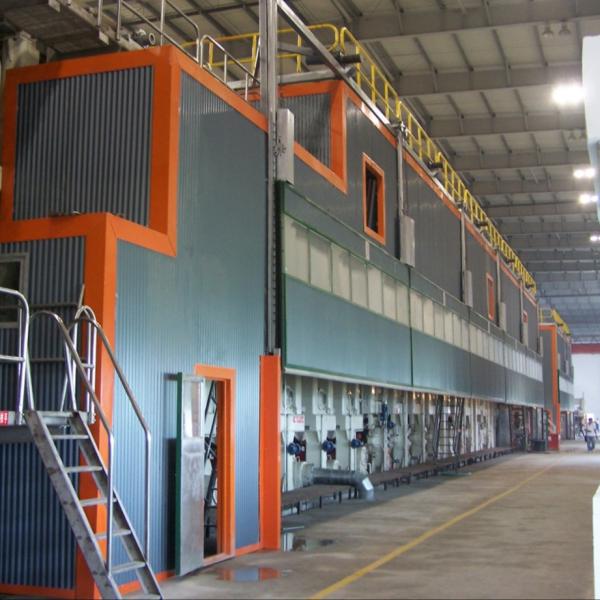

FOCUS 3200 Triplex Wire Multi-Cylinder Paper Machine Paper Making Machine

This machine is used for making 150-180g/m2 paper. It adopts air-cushioned headbox. The forming part adopts the form of three fourdrinier nets. The press part adopts one vacuum suction, one vacuum press and two blind hole presses. The press part adopts hydraulic pressure and Pneumatic pressurization system, the drying section adopts a drying cylinder with good ventilation performance directly connected to the frame, and the paper machine adopts a closed hood and a fully digitally controlled AC variable frequency sub-transmission scheme.

Paper machine copymaking process: (see the paper machine plan for details)

Air-cushioned headbox—three fourdrinier wire section (screening 23+10+7m)—a vacuum suction (φ650)—a vacuum press (φ900)—blind hole roll press (φ1350) — 44 sets of φ1800 drying cylinders. The arrangement form is: {(8φ1800 dryer)+(10φ1800 dryer)+(10φ1800 dryer)—Glue machine—(8φ1800 dryer) + (8φ1800 dryer)+calender— B/M meter (pre- Leave a place)-library-style paper reel. (Including three rolls of paper shelf)

Main process parameters

Packaging Details

Wooden box or pack it according to customers special request

​


COMPANY INFORMATION

SUCCESSFUL MACHINE PROJECTS

THERMAL PAPER COATING MACHINE PRODUCTION PROCESS

​

CUSTOMER FEEDBACK

CERTIFICATE

FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.



Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

China Manufacturer BPA Free Blue Imaging Black Imaging Wood Pulp 45GSM/48GSM/55GSM/58GSM/60GSM/65GSM/70GSM/80 GSM Thermal Paper Roll

Qingdao Focus/ Goodwill Group, founded in 1990s, was dedicated to manufacture paper machines and provide production line for paper industry. Based on leading technologies, experiences and knowhow, we could meet a variety of requirements and offer turn key projects.

Since we built more than 30 successful production lines and exporting lots of machines in South America, Asia, Africa, Europe , etc., more customers desired to visit us personally, not only check capacity but also to see our machines how to work and paper quality made by them, so 15 years ago we built paper factory by machines and production lines we produced and designed. Right now, our own lines focus on producing carbonless papers (NCR) and thermal papers, however, we only produce top grade papers for showing our machines and technologies better.

FOCUS, our certified brand, was also created at same time. We always treat it as our own kid and everybody put all efforts to take care of it every step, from raw material source to papers the customer received. As development, FOCUS from unknown becomes famous and attractive internationally for outstanding quality and great innovation. Besides, a talented, high-performing team dedicated to delivering exceptional service to our customers and partners. Meanwhile, we also found branches in British, Peru, Singapore, Bangladesh to serve marketing more efficiency.
You'll find it's so easy to work with Qingdao Focus and enjoy the relation, because FOCUS is the promise that offer you one stop and trouble free products and service!
